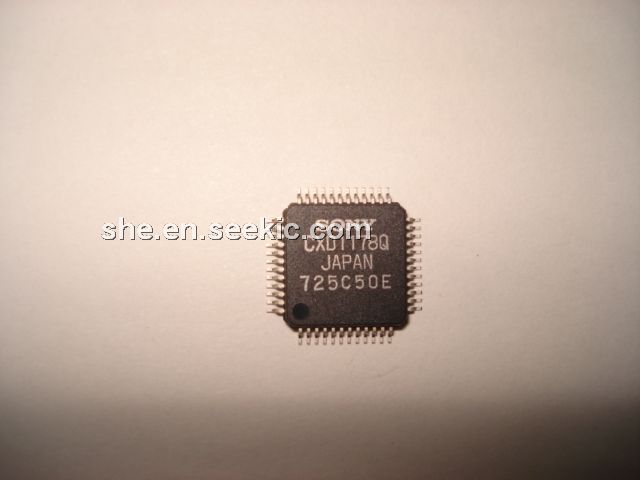

The CXD1178Q is an 8-bit high-speed D/A converter for video band use. The supply voltage is from 4.75 to 5.25V. The CXD1178Q has an input/output equivalent to 3 channels of R, G and B. The CXD1178Q is suitable for use of digital TV, graphic display, and others. The structure of this CXD1178Q module is Silicon gate CMOS IC.
Parametrics
CXD1178Q absolute maximum ratings:(1)Supply voltage, AVDD, DVDD: 7V; (2)Input voltage (All pins), VIN, VDD+0.5 to VSS–0.5V; (3)Output current (Every each channel), IOUT: 0 to 15mA; (4)Storage temperature, Tstg: –55 to +150℃.
Features
CXD1178Q features: (1)Resolution 8-bit; (2)Maximum conversion speed 40MSPS; (3)RGB 3-channel input/output; (4)Differential linearity error ±0.3LSB; (5)Low power consumption 240 mW(200 Ω load at 2 Vp-p output); (6)Single 5 V power supply; (7)Low glitch noise; (8)Stand-by function.

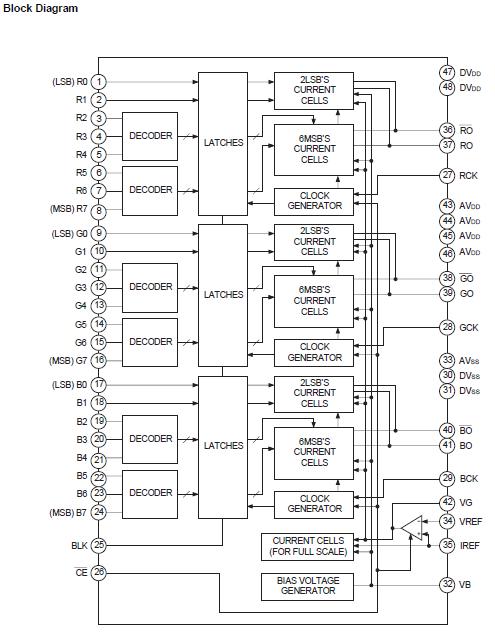

Diagrams
