Product Summary

The VHF28-16IO5 is a Half Controlled Single Phase Rectifier Bridge. Applications are (1)Supply for DC power equipment; (2)DC motor control.

Parametrics

VHF28-16IO5 absolute maximum ratings: (1)IdAV: 28 A; (2)IdAVM: 32 A; (3)IFRMS, ITRMS: 23 A; (4)TVJ: -40 to +125℃; (5)TVJM: 125℃; (6)Tstg: -40 to +125℃.

Features

VHF28-16IO5 features: (1)Package with DCB ceramic base plate; (2)Isolation voltage 3600 V~; (3)Planar passivated chips; (4)fast-on terminals; (5)UL registered E 72873.

Diagrams

VHF28-16IO5 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

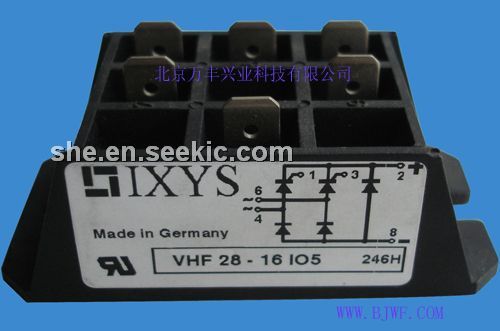

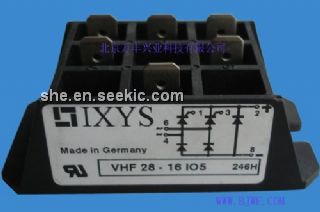

VHF28-16io5
VHF28-16io5

Ixys

SCR Modules 28 Amps 1600V

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VHF25-08I07
VHF25-08I07


BRIDGE RECT SGL PHASE 800V

Data Sheet

Negotiable
VHF25-08io7
VHF25-08io7

Ixys

SCR Modules 25 Amps 800V

Data Sheet

Negotiable
VHF25-12io7
VHF25-12io7

Ixys

SCR Modules 25 Amps 1200V

Data Sheet

Negotiable
VHF28
VHF28

Other


Data Sheet

Negotiable
VHF28-08io5
VHF28-08io5

Ixys

SCR Modules 28 Amps 800V

Data Sheet

Negotiable
VHF28-12IO5
VHF28-12IO5


RECT BRIDGE 1PH 1200V FO-F-A

Data Sheet

0-1: $16.18
1-10: $14.96
10-25: $13.75
25-100: $12.78
100-250: $11.73
250-500: $11.16
500-1000: $10.51
1000-2500: $10.19
