Product Summary

The AD7820KR is a high speed, microprocessor-compatible 8-bit analog-to-digital converter. The AD7820KR uses a half-flash conversion technique to achieve a conversion time of 1.36μs. The converter AD7820KR has a 0V to +5V analog input voltage range with a single +5V supply. The AD7820KR is fabricated in an advanced, all ion-implanted, high speed, linerar compatible CMOS process and features a low maximum power dissipation of 75mW. The AD7820KR is available in 20-pin DIPs, SOICs and in 20-terminal surface mount packages.

Parametrics

AD7820KR absolute maximum ratings: (1)VDD to GND: 0V, +7V; (2)digital input voltage to GND: -0.3V, VDD+0.3V; (3)digital output voltage to GND: -0.3V, VDD+0.3V; (4)VREF(+) to GND: VREF(-), VDD+0.3V; (5)VREF(-) to GND: 0V, VREF(+); (6)VIN to GND: -0.3V, VDD+0.3V; (7)operating temperature range: -40 to 85℃; (8)storage temperature range: -65 to 150℃; (9)lead temperature: 300℃; (10)power dissipation: 450mW; (11)derates above: 6mW/℃.

Features

AD7820KR features: (1)fast conversion time: 1.36μs max; (2)built in track and hold function; (3)no missed codes; (4)no user trims required; (5)single +5V supply; (6)ratiometric operation; (7)no external clock; (8)extended temperature range operation; (9)skinny 20-pin DIP, SOIC and 20-terminal surface mount packages.

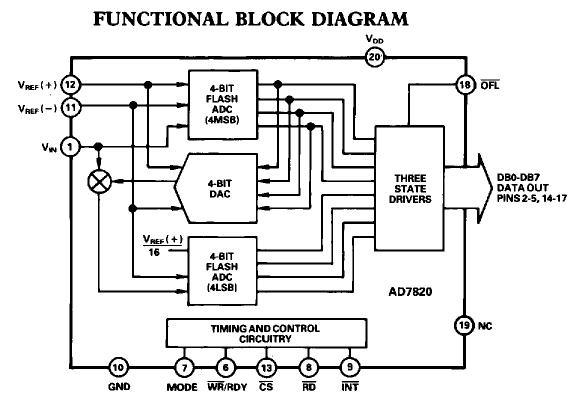

Diagrams

AD7820KR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7820KR
AD7820KR


IC ADC 8BIT HS TRACK/HOLD 20SOIC

Data Sheet

0-37: $10.03
AD7820KR-REEL
AD7820KR-REEL


IC ADC 8BIT HS TRACK/HOLD 20SOIC

Data Sheet

0-1000: $7.87
AD7820KRZ
AD7820KRZ


IC ADC 8BIT HS TRACK/HOLD 20SOIC

Data Sheet

0-1: $11.24
1-10: $10.22
10-100: $8.68
100-250: $7.92
250-500: $7.41
500-1000: $6.81
AD7820KRZ-REEL
AD7820KRZ-REEL


IC ADC 8BIT HS TRACK/HOLD 20SOIC

Data Sheet

0-1000: $6.81
