Product Summary

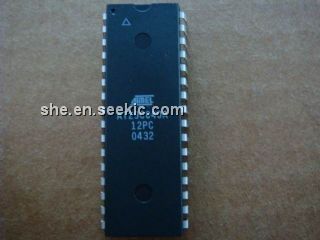

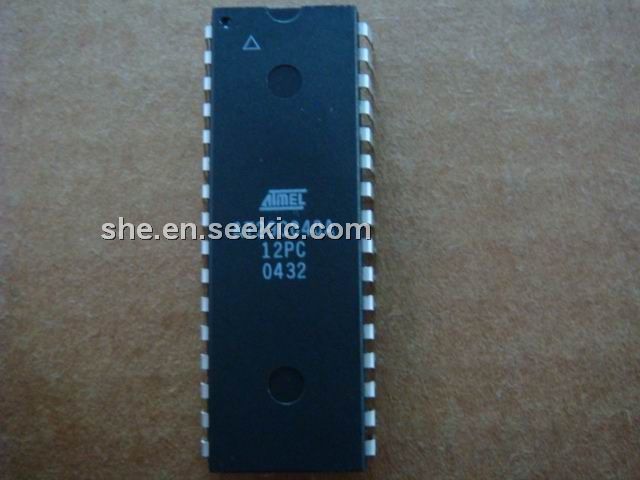

The AT29C040A-12PC is a 5-volt-only in-system Flash Programmable and Erasable Read Only Memory (PEROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS EEPROM technology, the AT29C040A-12PC offers access times up to 100 ns, and a low 220 mW power dissipation. When the device is deselected, the CMOS standby current is less than 100 mA. The AT29C040A-12PC endurance is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm is compatible with other devices in Atmel’s 5-volt-only Flash family.

Parametrics

AT29C040A-12PC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C040A-12PC features: (1)Fast Read Access Time-100 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 2048 Sectors (256 Bytes/Sector), Internal Address and Data Latches for 256 Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Two 16K Bytes Boot Blocks with Lockout; (7)Fast Sector Program Cycle Time -10 ms; (8)DATA Polling for End of Program Detection.

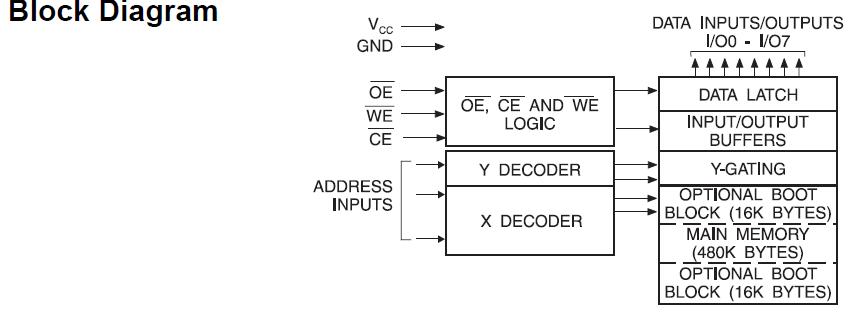

Diagrams

AT29C040A-12PC pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT29C040A-12PC
AT29C040A-12PC

Atmel

Flash 4M (512kx8)

Data Sheet

Negotiable
