Product Summary

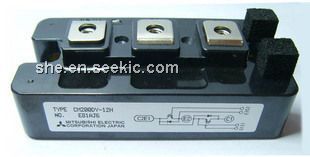

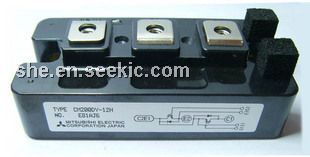

The CM200DY-12H is a high power switching use insulated type mitsubishi igbt module. Its applications include AC motor control, motion/servo control, UPS, welding power supplies.



Parametrics

CM200DY-12H absolute maximum ratings: (1)Junction temperatue: -40 to 150℃; (2)Storage temperature: -40 to 125℃; (3)Collector-emitter voltage: 600V; (4)Gate-emitter voltage: ±20V; (5)Collector current, IC: 200A; (6)Peak collector current, ICM: 400A; (7)Emitte current: 200A.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM200DY-12H
CM200DY-12H


IGBT MOD DUAL 600V 200A H SER

Data Sheet

Negotiable
